Environmental chambers for hot and cold performance testing of materials under tension,
compression, peel, and seal test conditions. Films, flexible packaging, rigid plastics,
and other materials.
Model TH-2700 designed for cold testing to - 80 C and hot testing to + 280 C. Inside
dimensions 8 in. W x 8 in. D x 20 in. H. Outside dimensions 14.25 in. W x 20.00
in. D (excluding door handle) x 28.50 in. H. Other temperature ranges and sizes

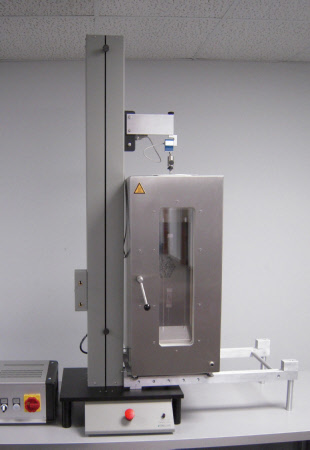

Model TH-2700 shown above. Model TH-2700 Chamber with door open, and standard hinge
configuration, to show detail in photo group at right, above left photo. Rack-mountable
Control Console shown in photo group at right, lower photo.
Three slide-rail assemblies available for MT Series Universal Testers: 1) left-to-right
on workbench (22 in. table area required to right of tester, 42 in. left-hand side
of tester to right-hand side of slide assembly), 2) front-to-back, table-top, and,
3) front-to-back, with back support legs to floor. Accommodates workbenches 24 in.
- 30+ in. Depth, 30 in - 34 in. Height.
